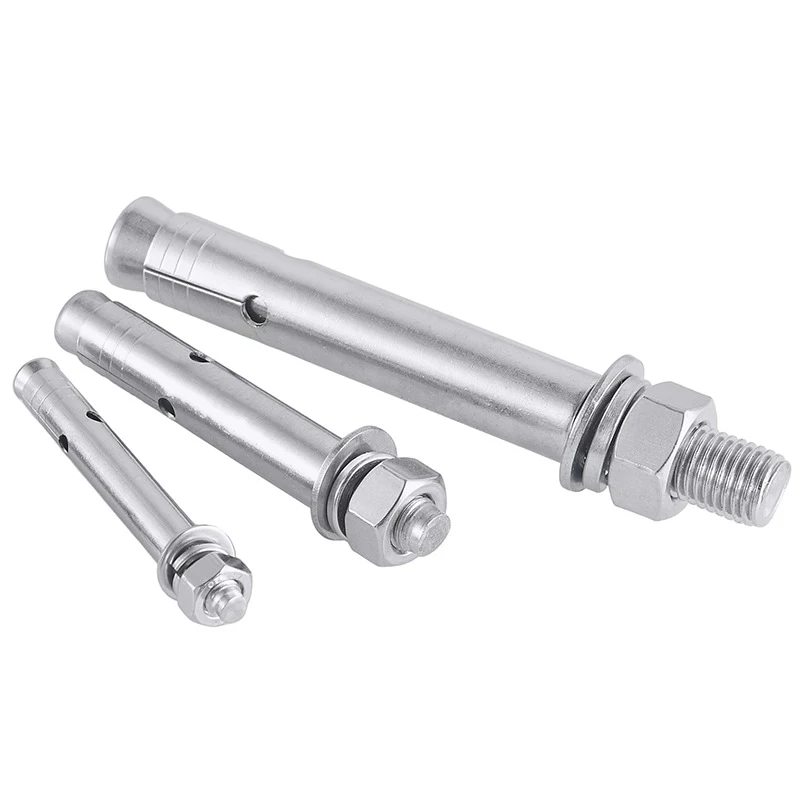

Product reference photography. Final configuration follows the approved drawing.
Bolts, Nuts & Washers
Stainless Steel Expansion Anchors
Provide a mechanical expansion fixing for a specified solid substrate.
Expansion-anchor designation
Stainless steel identified
Two supplied product views
Catalog reference: JS-037
01 / PRODUCT DETAILS
Features & configuration
Provide a mechanical expansion fixing for a specified solid substrate. The reference images show the available product form. Match the connection geometry and specified material to your project before ordering.
- Expansion-anchor designation.
- Stainless steel identified.
- Two supplied product views.
02 / TECHNICAL INFORMATION
Specifications
| Product type | Stainless Steel Expansion Anchors |
| Material family | Stainless steel; exact grade to be confirmed |
| Anchor size | Confirm with the selected product drawing or quotation |
| Substrate | Confirm with the selected product drawing or quotation |
| Embedment | Confirm with the selected product drawing or quotation |
| Stainless grade and load documentation | Confirm with the selected product drawing or quotation |
Numerical dimensions and performance ratings are not specified in the supplied product record. Confirm the listed requirements against a quotation and approved drawing.
03 / PROJECT FIT
Applications
Designed concrete fixings
Mounting base attachment
Application guidance describes the component's typical role. Suitability depends on the complete system design, mating parts and project requirements.
04 / PRODUCT PHOTOGRAPHY
Image list
